Back Hoe

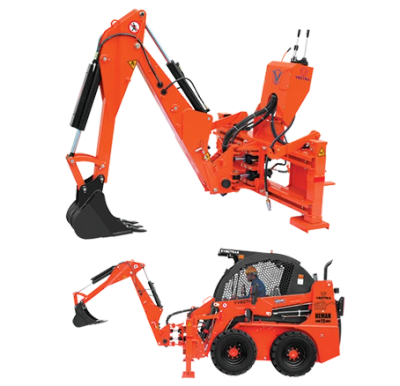

Hydraulic backhoe with trans-seatable frame and mechanical block, hydraulic and independent stabilize feet, main joints with pins and bushes in hardened and rectified steel,, linkage kit for skid-steer loader and back hoe loader.

Digging depth [mm]                                                                        2600

Weight [Kg]                                                                                       600

Frame largeness [mm]                                                                    1400

Swing each side                                                                      90 degree

Oil flow [LPM]                                                                                      80

Pressure [Bar]                                                                                   175

Bucket Breakout Force [KN]                                                               23

A [mm]                                                                                           1950

B [mm]                                                                                           2600

C [mm]                                                                                           2965

D [mm]                                                                                           3545

E [mm]                                                                                             200

Bucket size Available 300 mm, 450 mm and 600 mm for Backhoe Application/Ditch cleaning/excavation.

Note: All dimensions are variable within + or -1.5% VERT reserves the right to change specifications with prior notice.
