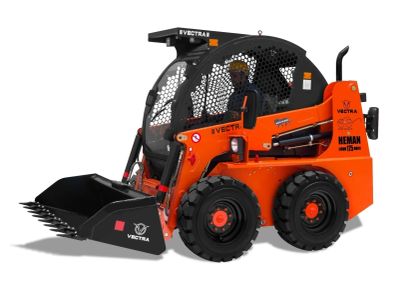

HEMAN 175 Skid Steer Loader
Dimensions mm/de
- Length with Bucket 3475
- Length without Bucket 2440
- Width with tyres 1650
- Overall Height 2100
- Ground Clearance 190
- Departure angle rear 26
- Wheelbase 1023
- Turning radius rear corner 2000
- Turning radius bucket corner 2680
- Pin Height 3022
- Dump Angle 40
- Dump Height 2210
- Reach at dump height 642
- Roll back angle at ground 28
- Bucket width [standard] 1708
- Max Reach at full height 4000
Features
- Multi-disk parking brakes
- Gear drive
- Front cab access
- Fuel water trap
- Hydraulic parallel lift
- Adjustable seat
- Instruments audio/visual
- Instruments
- Dual element air cleaner
- Chassis-rigid fully welded high tensile steel structure
- Roof window for enhanced operating visibility
- Rear window for emergency exit
- Heavy duty gear boxes with slip-free gears
- Axles of high ductile forgings, self lubricating
Mechanical hitch for quick change of attachments
- Ergonomically designed seat, user friendly controls.
- Visual and audio warning to prevent system failures.
- Adequate inbuilt safety measures for operator/machine.
- Hydraulic tilt back cabin for maintenance ease.
- Easy to maintain and service with normal tools.
Transmission
Hydrostatic 4 X 4 independent drive through Tandem variable displacement axial pumps.
Fixed displacement low speed high torque gerola motors Final drive through positive gear boxes.
Tyres
Front /Rear 10 X16.5-8/10PR
Max travel speed 10 Km/hr
Standard Features
- Auxilliary hydraulics
- Cab Swing up, Tubeless tyres
- Key stop, Lift arm stop, Lifting eyes
- Working light, Quick hitch, Roof Window
- Safety seat belt
- Air clener clog warning indicator
- Battery charge
- Charge pump pressure
- Coolant temperature gauge
- Engine oil pressure
- Fuel level gauge, hour counter
- Hydraulic oil temperature gauge
- Cabin light, Rear window for emergency exit, Cabin fan
- Hydraulic and Fuel clog indicator
- Cab with front door lock
- Rear view mirrors, wiper motor with wiper blade
- Head lights with side indicators, Tool kit, 4 chamber tail lamps.
Hydraulics
Engine driven gear pump with valve block, twin arms lift cylinder with end cushion and bucket cylinders.
Flow [Liters per min] 80
Working pressure [bar] 175
Electricals
12 Volts negative earth system with battery isolater.
Battery 130Ah
Low maintenance alternator 36Amp
Starter Motor 12 V
Brakes
Service brake: Hydraulically activated and released multi-plate fade free brakes form integral part of drive motors.
Parking Brake: Electrically activated
Capacities & Performance
Fuel system 62 Liters
Engine Lub Oil 9.5 Liters
Engine Coolant 16 Liters
Transmission 14 Liters
Hydraulic system 70 Liters
Rated operating capacity 600- 750 Kgs
Tipping load 1200- 1500 Kgs
Engine
Standard: Simpson TSJ436 Industrial BSIII60PS/44.1Kw @2200rpm 4 cylinder, water cooled, Diesel Engine, Turbo Charge.
Optional: Simpsons, 4 Cylinder in line direct injection, liquid cooled. Gross power @2200 rpm- 74.8PS/55Kw. Turbo Charge. All engines comply with BS-III norms.
Attachments
- 6 IN 1 Bucket
- Backhoe
- Sweeper Collector
- Ripper Tooth
- Excavator Buckets: 300 mm, 450 mm, 600 mm & Ditch cleaning bucket.
- Pallet Forks
- Industrial Grappler
- Rock Breaker
- Snow Blower
- Steel tracks [Track over tyres]
- Rubber tracks [Track over tyres]
- Post hole borer/auger
- Shredder
- Snow Blade
- Stump Grinder
- Trencher
- Side Tip Bucket
- High Tip Bucket
Optional : Heavy duty tyres/Solid tyres. Buckets of varying capacities upto 0.65cum limited to machine rating operating capacity. Servo variant also available.
